CHINA RAYSINCE RHD ELECTRIC MICRO BUS WITH 11 SEATERS
Technical Specification
| Description: | Electric Micro Bus | ||||
| Model NO.: | LS210 | ||||
| Technical Specification | |||||
| Main Parameters | Vehicle Dimensions（L*W*H） | 4510*1680*2000 mm | |||
| Wheel Base（mm） | 3050 | ||||
| Kerb Weight / Total Mass(kg) | 1580/2600 | ||||
| Rated Contained Mass(kg) | 1020 | ||||
| Approach Angle / Departure Angle（°） | 17 / 16 | ||||
| Front / Rear Tracks（mm) | 1435/1435 | ||||
| Steering Position | Right Hand Drive | ||||
| NO.of Seaters | 11 Seaters | ||||
| Electrical Parameters | Battery Capacity（kWh） | CALB-41.85 kWh | |||
| Driving Range（km） | 280 KM | ||||
| Motor Rated/Peak Power (kw) | 30/50 KW | ||||
| Rated / Peak Torque（N.m） | 80/200 | ||||
| Driving Speed (km/h) | 100 km/h | ||||
| Climbing Capacity（%） | 30% | ||||
| Chassis Parameters | Drive Mode | Middle-Engine Rear-drive | |||
| Front Suspension | Macpherson Independent Front Suspension | ||||
| Rear Suspension | Vertical 5 Plate Spring Type | ||||
| Steering Type | EPS Electronic Power Steering | ||||
| Tire Size | 185R14LT 8PR | ||||
Details Display

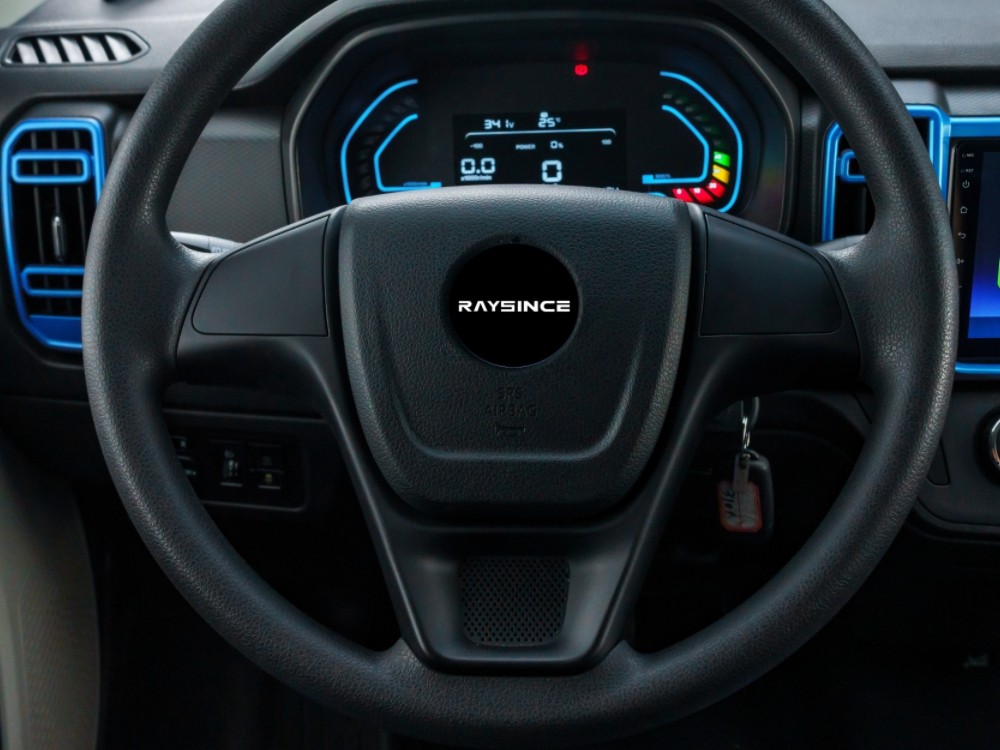

Main Driver Airbag
The driver's airbag used in conjunction with the safety belts, can provide better safety protection to the driver. Based on the function of the safety belts, the airbag further offers cushioning and protection to the driver, providing all around safety assurance for the driver.

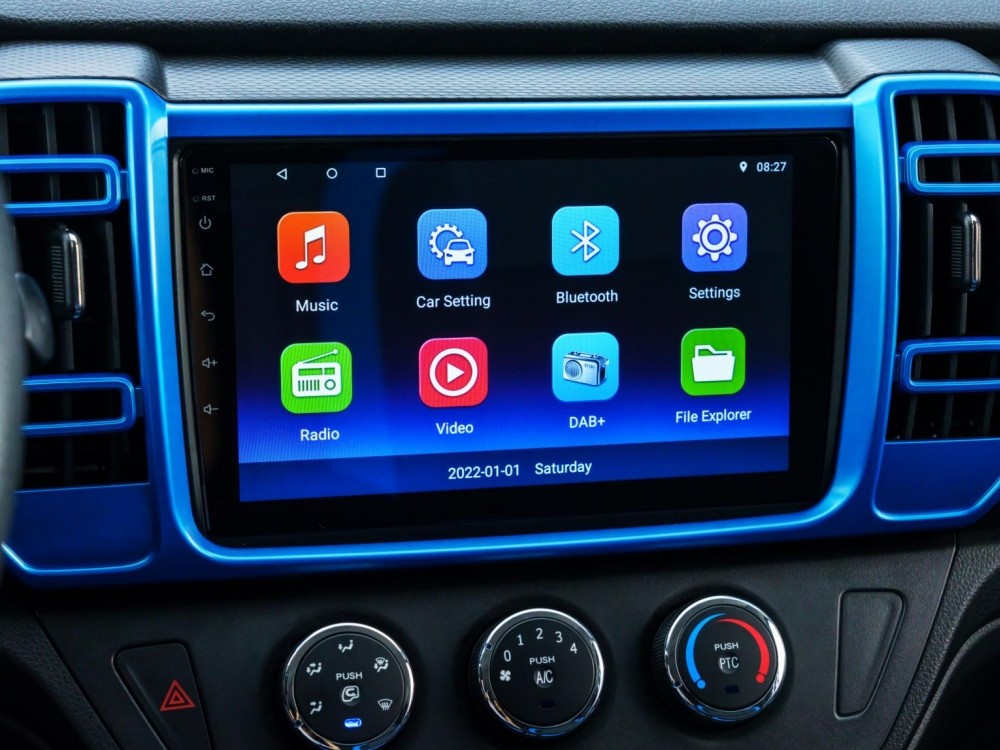

Multimedia Touch Screen
Various functions, clearly presenting everything from entertainment and audio, visual content to vehicle information, easily meeting all your travel needs.

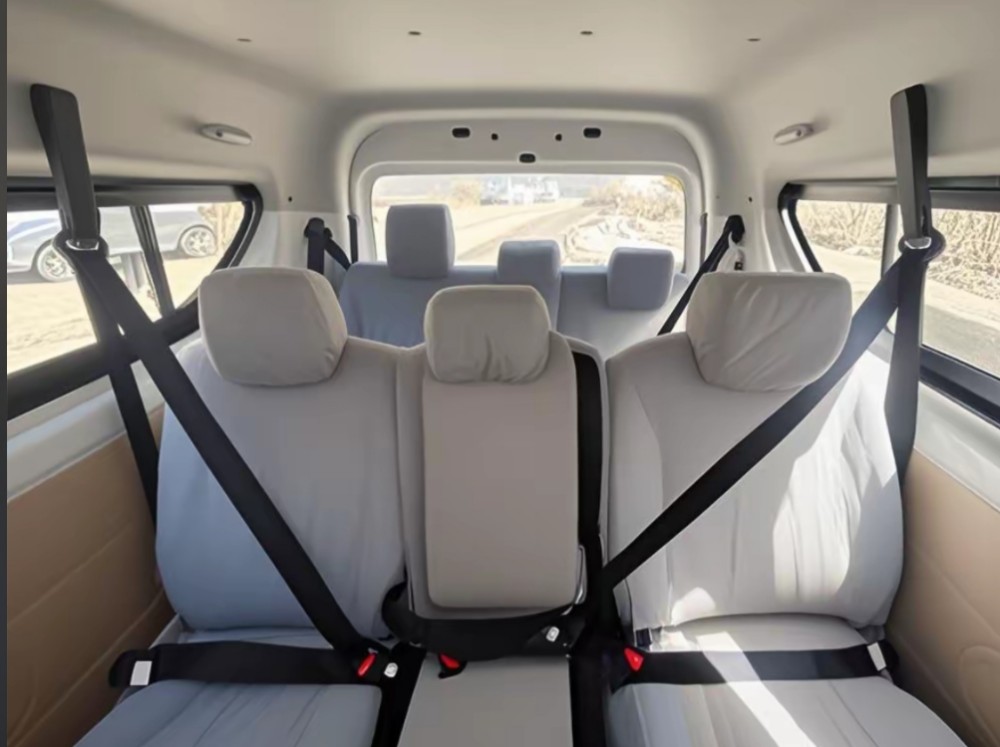

Business Cabin
The interior space is spacious with 9 seaters+2 folded seaters.These seats feature an ergonomic design, conforming to the human body's curves for a comfortable ride. The combined steps at the middle door make getting on and off the vehicle easily, creating a courteous atmosphere for passengers.

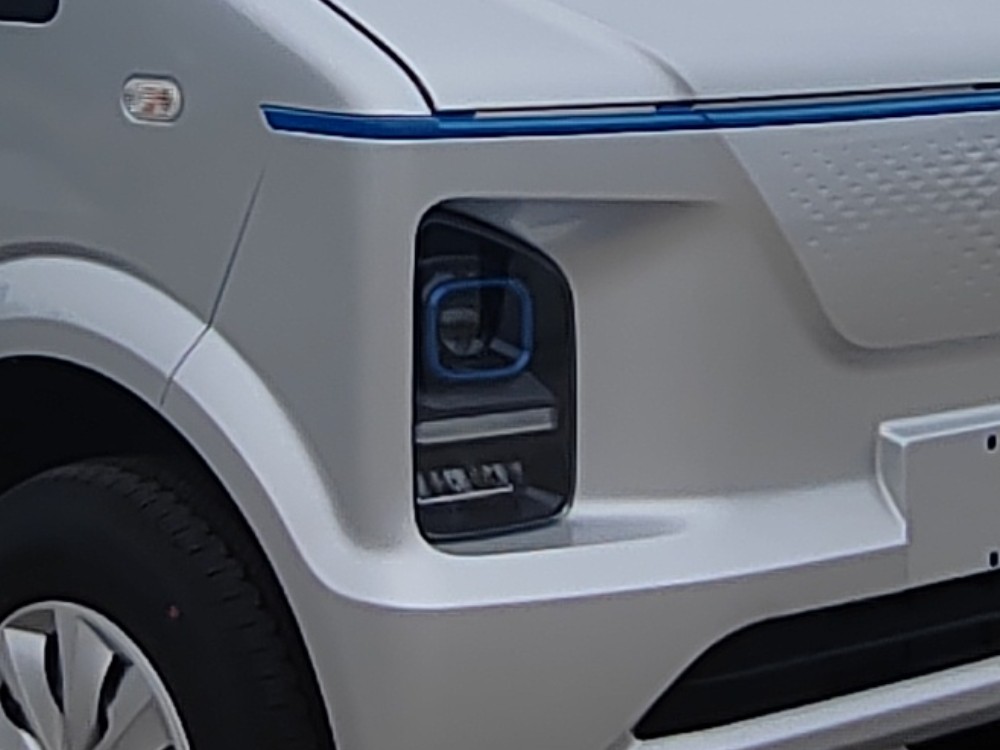

Sharp Looking Headlamp
The internal structure of the lamp group is simple but fashionable, with the combination of lenses and light strips refracting a dazzling glow. This not only enhances the vehicle's recognition but also illuminates the way ahead during night trips.

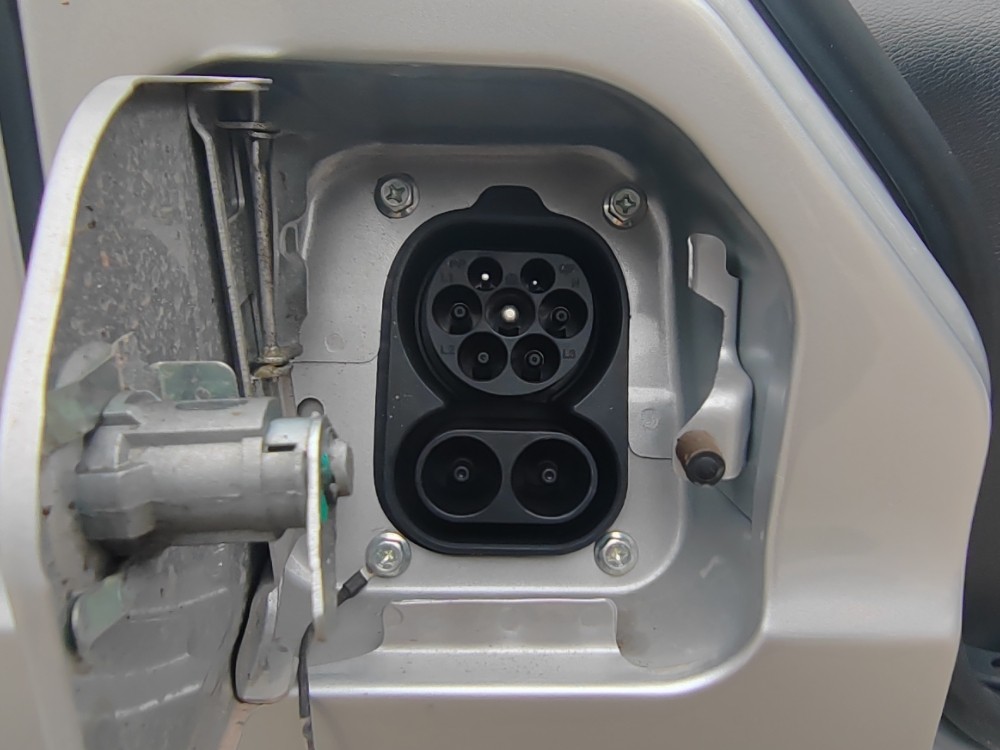

CCS2 DC Charge Port
Combined design for convenience and fast charger, Integrating AC and DC charging functions into one socket provides users with a unified and convenient charging experience.
Supports high voltage DC fast charging, which can replenish a large amount of electrical energy for electric vehicles in a short time, greatly reducing the charging time.
It has extensive compatibility and strong versatility, reducing users' troubles of being unable to charge due to incompatible charging interfaces.

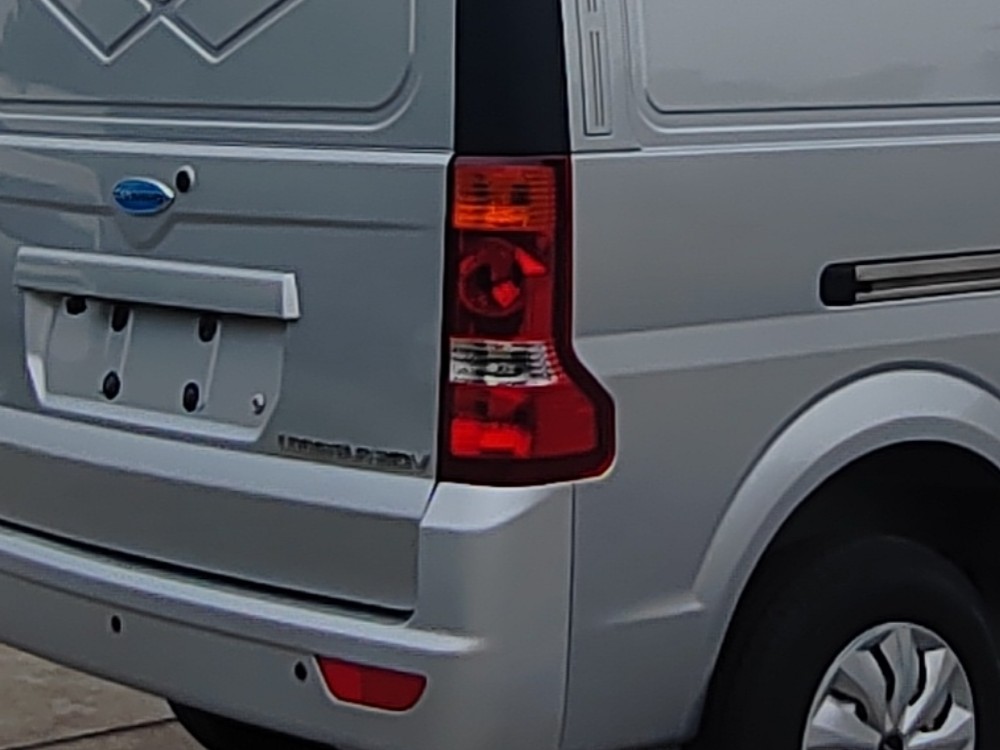

Simple Stylish Taillights
With simple lines, it adds a sense of fashion and technology. It has a good visual effect. The simple taillights make the rear of the vehicle look neater and more imposing, enhancing the overall aesthetic and quality. The simple taillights can better adapt to the changes in market demands and consumers' aesthetic concepts.
