BRAND NEW RAYSINCE RHD ELECTRIC MICRO BUS WITH 15 SEATERS
Technical Specification
| Description: | Electric Micro Bus | ||||
| Model NO.: | XML6532JEVS0C | ||||
| Technical Specification | |||||
| Main Parameters | Vehicle Dimensions（L*W*H） | 5330*1700*2260 mm | |||
| Wheel Base（mm） | 2890 | ||||
| Kerb Weight / Total Mass(kg) | 1760/3360 | ||||
| Rated Contained Mass(kg) | 1600 | ||||
| Approach Angle / Departure Angle（°） | 18 / 17 | ||||
| Front / Rear Tracks（mm) | 1460 / 1440 | ||||
| Steering Position | Left Hand Drive | ||||
| NO.of Seaters | 15 Seaters | ||||
| Electrical Parameters | Battery Capacity（kWh） | CATL-53.58 kWh | |||
| Driving Range（km） | 300 KM | ||||
| Motor Rated / Peak Power (kw) | 50 / 80 KW | ||||
| Rated / Peak Torque（N.m） | 130 / 300 N.m | ||||
| Driving Speed (km/h) | 100 km/h | ||||
| Climbing Capacity（%） | 30% | ||||
| Chassis Parameters | Drive Mode | Middle-Engine Rear-drive | |||
| Front Suspension | Macpherson Independent Front Suspension | ||||
| Rear Suspension | Vertical 5 Plate Spring Type | ||||
| Steering Type | EPS Electronic Power Steering | ||||
| Tire Size | 195/70R15LT | ||||
Details Display

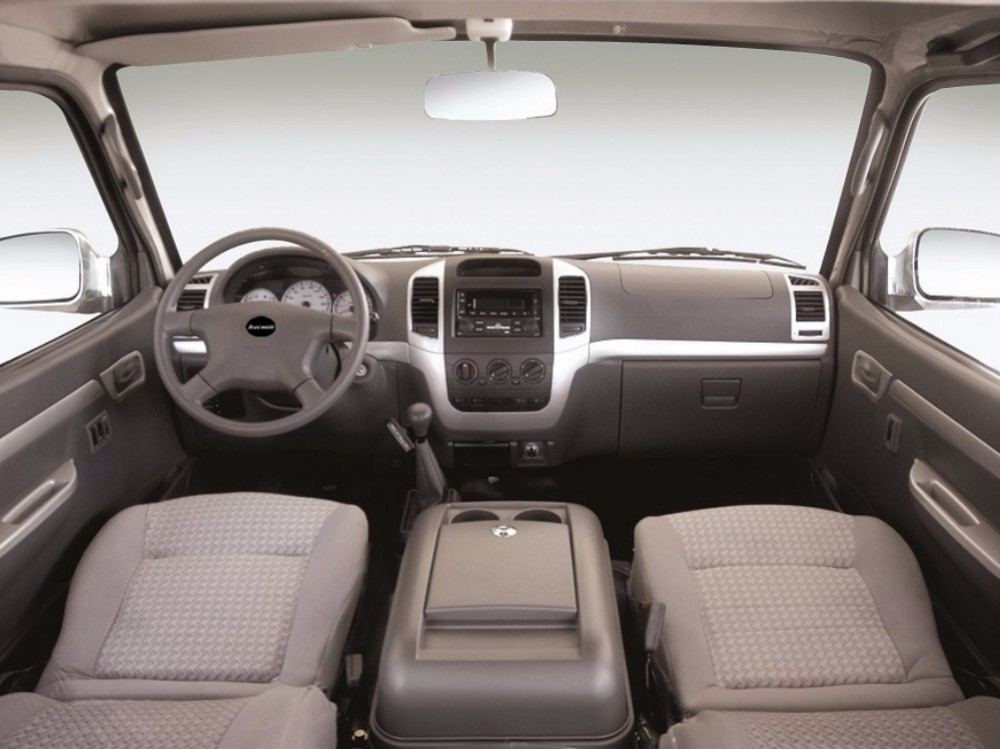

Luxurious Cockpit
The luxurious cockpit offers a better experience for driving.
It is equipped with a highly integrated instrument panel. The gear shifting mechanism is upgraded to a knob structure, and an ECO mode is added to the D gear.

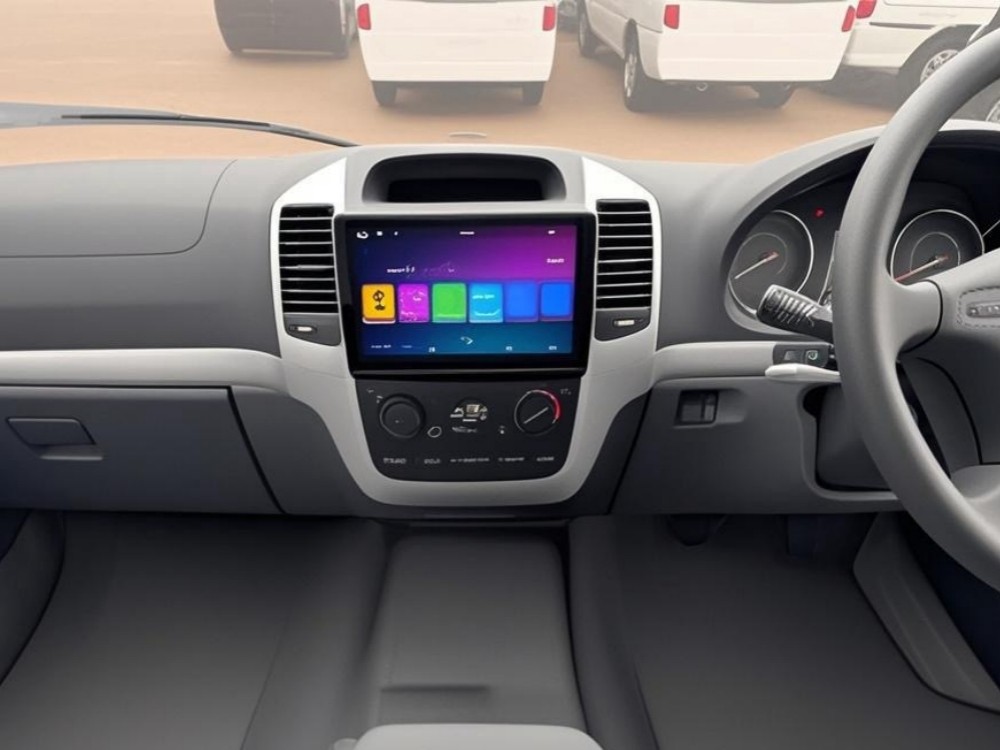

Multimedia Touch Screen
Various functions, clearly presenting everything from entertainment and audio, visual content to vehicle information, easily meeting all your travel needs.

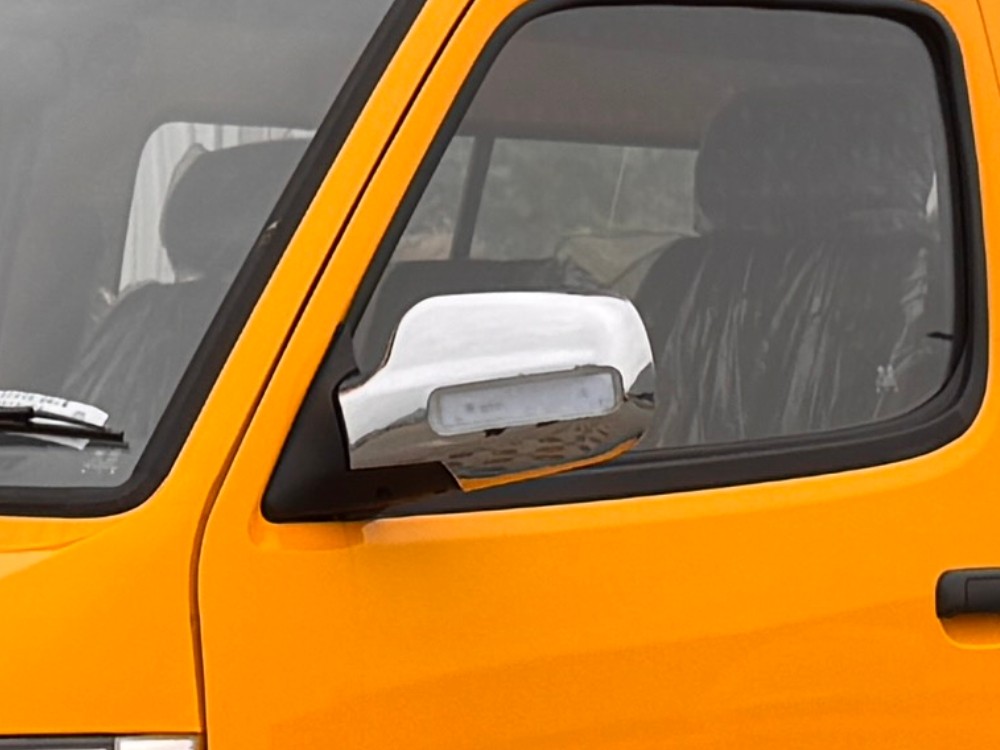

Chromed Rearview Mirror
Electrically adjustable for easy use. The chromed exterior enhances the overall aesthetics of the vehicle.

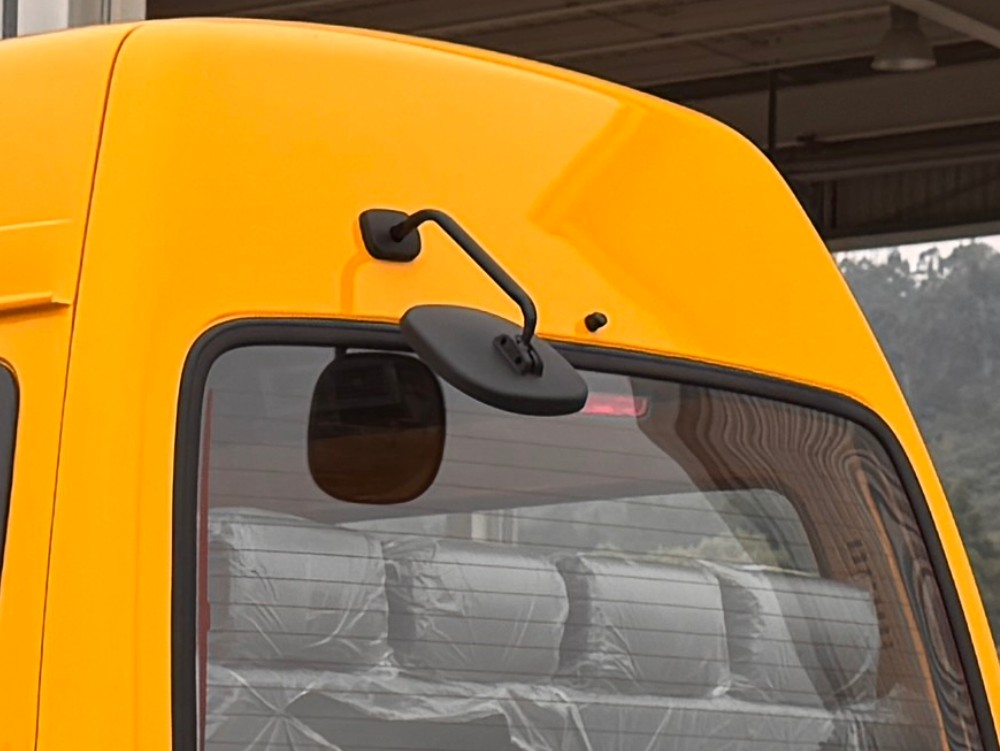

Auxiliary Rearview Mirror
It helps to expand the driver's field of vision, observe the rear situation, and improve driving safety.

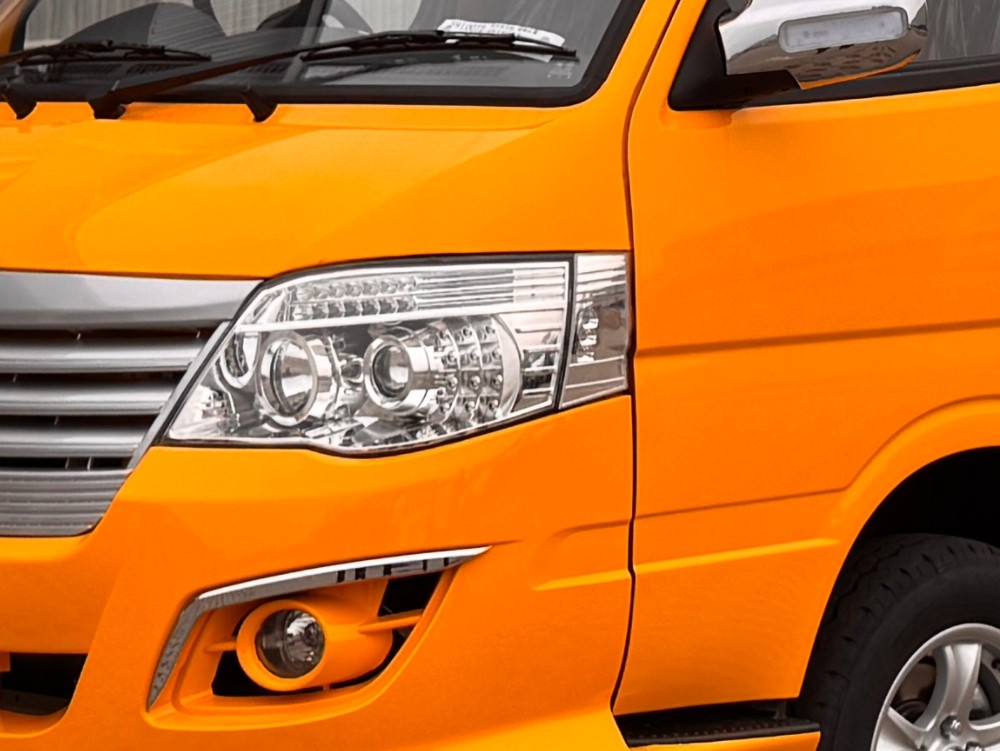

Sharp Looking Headlamp
The internal structure of the lamp group is exquisite, with the combination of lenses and light strips refracting a dazzling glow. This not only enhances the vehicle's recognition but also illuminates the way ahead during night trips.

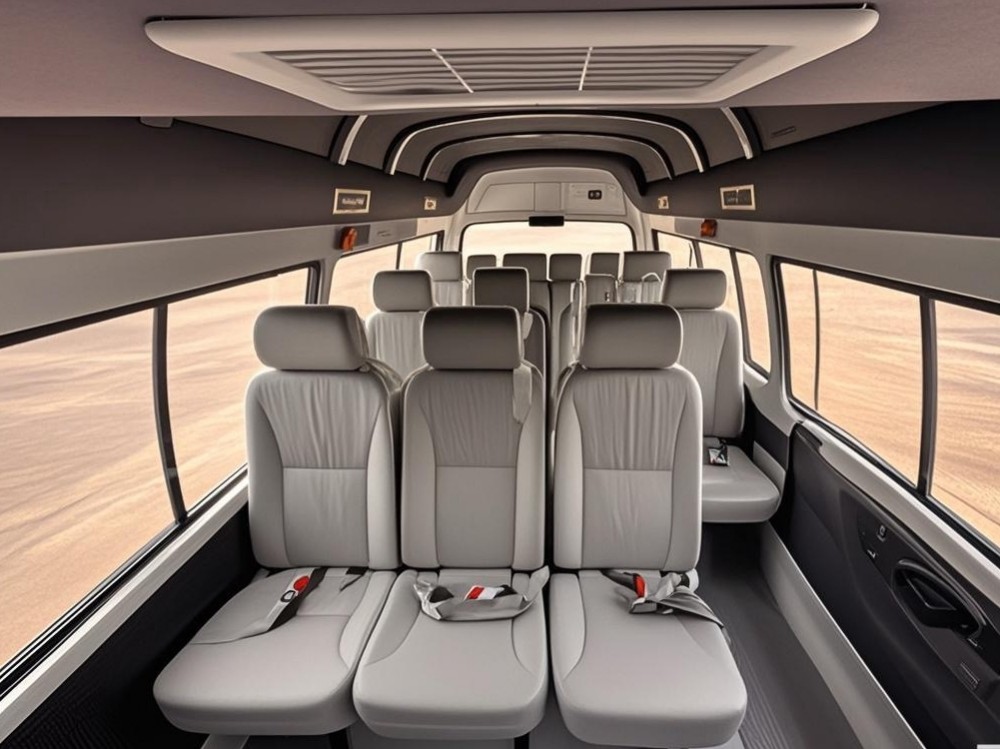

Business Cabin
The interior space is spacious with 9-15 multi shaped leather seaters. These seats feature an ergonomic design, conforming to the human body's curves for a comfortable ride. The combined steps at the middle door make getting on and off the vehicle easily, creating a courteous atmosphere for passengers.
